Low Price Cost Fully Automatic Production Line T Shaped Pamper Dispos Sleepy Kid Baby Diaper Manufacturing Machine Manufacturer

FOB Reference Price:Get Latest Price
$150,000.00 - $650,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
SRNK600-02
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 150 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Configuration (Min. Order: 1 Sets)

More

Customized logo (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Product Type:
Diaper Machine
Processing Type:
Laminating Machine
Power(W):
280~330KW
Warranty:
1 year
Condition:
New
After-sales Service Provided:
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Place of Origin:
Fujian, China
Brand Name:
Baby Diaper Machine
Voltage:
380V 50HZ, Tri-phase
Weight:
About 70-80 Tons
Certification:
CE
Production Capacity:
98%
Dimension(L*W*H):
25~30m*4.5~8m*3.5~4.5m
Applicable Industries:
Manufacturing Plant, Health Care
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Canada, Turkey, Germany, Viet Nam, Philippines, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Showroom Location:
None
Machine Type:
High speed, Full servo
Working Power:
220~300KW
Production Speed:
600~800 pcs/minute
Stander Of Whole Machine:
60*60mm Solid Square Steel
Control System:
PLC, Servo Motor
Air Compressor:
About 0.6-0.8Mpa (customer prepared)
Machine Color:
Green, Blue, White, or Customized
Diaper Sizes:
NB, S, M, L, XL, XXL
Diapers Optional:
I-shaped, T-shaped, Big Elastic Waistband
Machine Name:
Baby Diaper Machine
Supply Ability
Supply Ability:
60 Set/Sets per Year Baby Diaper Machine
Packaging & Delivery
Packaging Details
1. Antirust Oil
2. PE Film Cover
3. Standard Export Wooden Case
Port
Xiamen, China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 150 To be negotiated
Low Price Cost Fully Automatic Production Line T Shaped Pamper Dispos Sleepy Kid Baby Diaper Manufacturing Machine Manufacturer
Product Overviews
Product Description
MAIN CONFIGURATION
Modular Design
Allow customized configuration for the specific product required. Retrofit and upgrade kits can be easily installed and tailored in order to meet customer’s requirements.
Compact Design
Smooth on-site start-up, easy operation and easy maintenance.
Full Servo
Each module is independently driven thus easing operators’ daily operations on the machine and ensuring adaptation to the raw materials used and environmental conditions.
Program System
Servo driven, intelligent HMI touch screen man-machine interface
Tension System
Tension control with buffer system, automatic web guiding system, to ensure materials stable working ar ZERO speed splice.
Driven System
Servo drive, digital size change, ensure run synchronously at full process.
Safety System
Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side.
Packaging System
Auto stacker to be defined by customer need (dual push dual exit).
Web Guiding System
Germany BST / USA FIFE
Product Detection System
Including the weight, metal, appearance, position
Customization
Available
FULL SERVO T-SHAPED BABY DIAPER PRODUCTION LINE
MAIN PARAMETERS
Working Speed (production speed)
500 pcs/minute
Power Supply
380V 50/60HZ, Tri-phase
Installation Power Capacity
265~330KW
Air Consumption
4800l/minute
Air Pressure
0.6-0.8Mpa
Qualified Rate
≥97% (excluding scrap caused by hot melt, materials splicing or joint)
Efficiency
≥85%
Machine Weight
60-70 Tons approximately
Machine Size (meters)
L: 25-30  W: 4.5-8  H: 3.5-4.5
CONFIGURATION & OPTIONS
Product Features
Different sizes and customizable shapes;
Thin, comfortable, high elasticized diaper;
Zero or low waste, shaped or rectangular, symmetrical or asymmetrical;
Back ears created with an elastic material with side tapes applied online;
Back ears folded onto the nonwoven topsheet;
Stackaging and packaging phases made easier by longitudinal folding, bifolding system, rotary blades and final press.

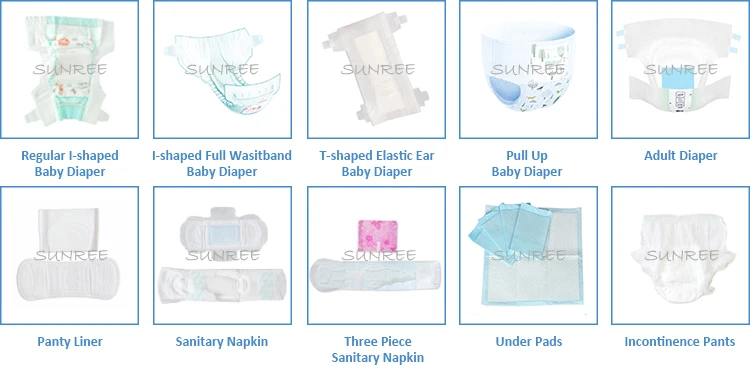

Product Size
NB, S, M, L, XL, XXL
Product Specification
Width: 210-230mm Length: 360-550mm
You could also inform us the product what you want to produce, or wish to develop a special new one, we are here to offer our customization support.
Our Advantages
Excellent CNC Processing Ability & Strict Process:
We subcontract processing including turn-milling, five axis, and gantry CNC machining center are introduced from Mazak, Moirisiki and Tsugami in Japan which are the world's most advanced equipment. They realized the high speed, high efficiency, high quality spare parts processing capacity, and ensure equipment parts processing precision and reduce labor costs.
In accordance with the ISO9001 quality control system, we will strictly control the quality in every link and every process in the production. And all the equipment has to pass strict inspection before they leave the factory to ensure product efficient, high quality, high performance and stable production.
Professional Team & Top Notch Components:
Machines are characterized by the use of high precision mechanical tooling and full-servo technology with high automation levels. All our projects are shared with customers as well as the production process and final on-site installation. The parts are all come from high quality suppliers, electric appliances are world famous brands, the use of top notch components ensures long-term reliability of the machines and a consistent saving in terms of spare parts and technical intervention.
More importantly, we have a skillful and well-experienced professional team in household paper machinery manufacturing and designing. The all have specialty in appointed iems to ensure the equipment precision machining and assembly accuracy.

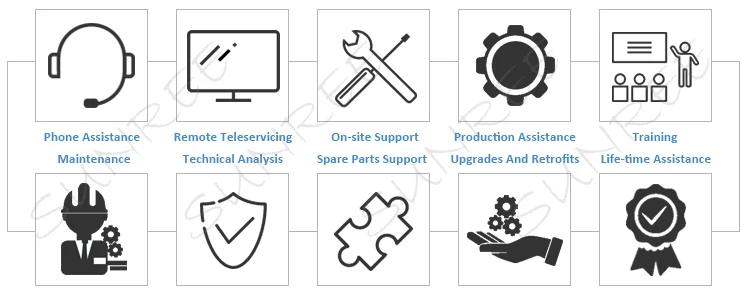

Integrated Technical Services
Our machines are thoroughly checked and tested before shipment. Once the machine has been assembled, a painstaking checkout is carried out so as to quicken startup in the customer’s plant. Every step in the start-up of the machine is carefully guarded in order for customers to speed up production schedules and reduce equipment downtime.
The services provided include feasibility studies, engineering and machine refurbishment. Technical suggestions are also offered by machine and plant experts in order to optimize productivity.
Application
Customized Solution
Company Profile
Why Choose Us
Favourable Comment
